ferrules

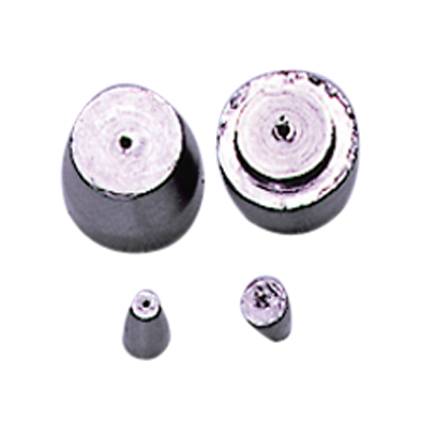

Graphite Ferrules
- Highest temperature stability (up to 450 °C).
- Reusable when handled with care

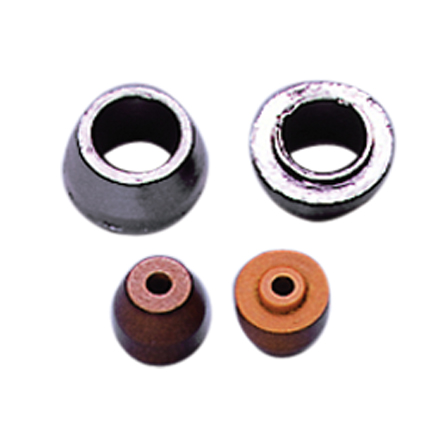

Vespel Ferrules
- Pure Vespel
- Vespel With 15 % Graphite
- Vespel With 40 % Graphite

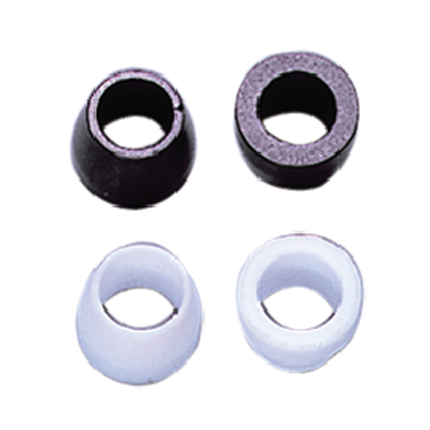

PTFE
- Can only be used up to 250 °C.
- They are not re-usable and not recommended for temperature programming.

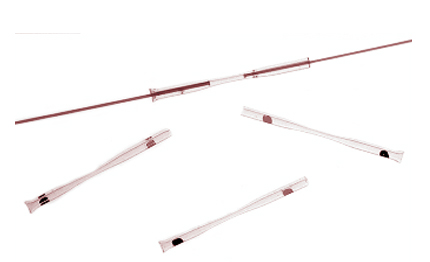

GC Column Connector
- Universal fused silica column connector
- Connects tubing from 0.15-0.53mmID
- Deactivated for maximum inertness
Injector Port Septa
Premium HT Quality
Blister pack for cleanliness and easily handling.
Features | ||||
|---|---|---|---|---|
| Septum grade | Material | Hardness | Max. Temp. | |
| BTO septa | for highest demands in GC and GC-MS | soft | 300/400°C * |  |
| AG3 septa | with higher durability than BTO | pierced, hard | 300/400°C * |  |
| Marathon septa | with extreme durability for 400 injections | pierced | 300/400 °C * |  |
| Septa for Shimadzu GC instruments have a maximum temperature stability of 300 °C; septa with 9–11.5 mm outer diameter have a stability of 400 °C. | ||||
Standard Quality
Features | |||||
|---|---|---|---|---|---|
Septum grade | Material | Thickness | Hardness | Max. Temp. | |
| Standard septa (ST) | beige silicone | 4 mm | 60° shore A |  | |
| High temperature septa (HT) | red non-bleeding silicone | 3 mm | 60°shore A | 320°C * |  |
| Silicone septa, soft | transparent silicone | 3mm | 45°shore A | 250 °C |  |
| Silicone / PTFE septa | white silicone, one side coated with grey PTFE | 3 mm | 200 °C |  | |
| When used at considerably higher temperatures – and working without septum purge – interfering peaks can occur due to thermal decomposition of the material. | |||||
Retention Gaps
The retention gap technique in combination with on-column injection allows concentration of a large sample volume in the capillary column.
Choice of the retention gap depends on the solvent used:
| Me-Sil retention gap | Only for use with n-hexane and diethyl ether |
| Phe-Sil retention gap | for all solvents except methanol and water |
| CW retention gap | for all solvents and especially for methanol and water |
Me-Sil retention gaps are more inert than Phe-Sil, while Phe-Sil is less susceptible to contamination.
| Retention Gaps | Available 10mtr & 25mtr |
|---|---|
| Methyl-Sil deactivated (max. temperature 320 °C) | 0.25 mm ID (0.4 mm OD) |
| Phenyl-Sil deactivated (max. temperature 320 °C) | 0.32 mm ID (0.5 mm OD) |
| CW deactivated (max. temperature 25 °C) | 0.53 mm ID (0.8 mm OD) |
PRE Columns (Deactivated Capillary Columns)
Recommended application: for preparation of capillary columns as precolumn, whenever a larger contamination capacity is required.
| Pre Columns | Available 10mtr & 25mtr |
|---|---|
| Methyl-Sil deactivated (max. temperature 320 °C) | 0.25 mm ID (0.4 mm OD) |
| Phenyl-Sil deactivated (max. temperature 320 °C) | 0.32 mm ID (0.5 mm OD) |
| CW deactivated (max. temperature 25 °C) | 0.53 mm ID (0.8 mm OD) |

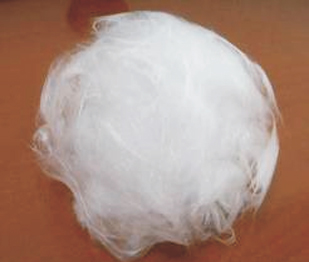

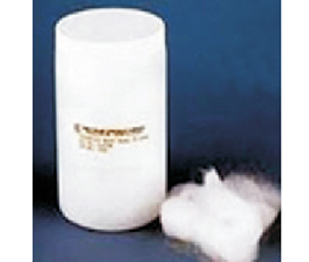

Glass Wools
Glass wool, long fibres, DMCS treated
Quartz wool, very fine fibres
Tube Cutter
For Stainless Steel tubing
For Plastic tubing
For Capillary tubing
